Say goodbye to unwanted noise disturbances in your commercial, industrial, or residential spaces with Soundlag®, the cutting-edge composite acoustic lagging solution designed to minimize sound transmission from pipes, valves, fan housings, and ductwork.
Engineered for superior performance, Soundlag® 4525C is the go-to choice for those aiming to meet the stringent requirements of the Building Code for both habitable and non-habitable rooms.
Through rigorous testing, Soundlag® 4525C (Acoustic Pipe Insulation and Duct Lagging) has proven to reduce the noise by 25 dB. This performance is higher by 5 dB when compared to conventional low noise pipe products, particularly in areas lacking ceilings or with penetrations.

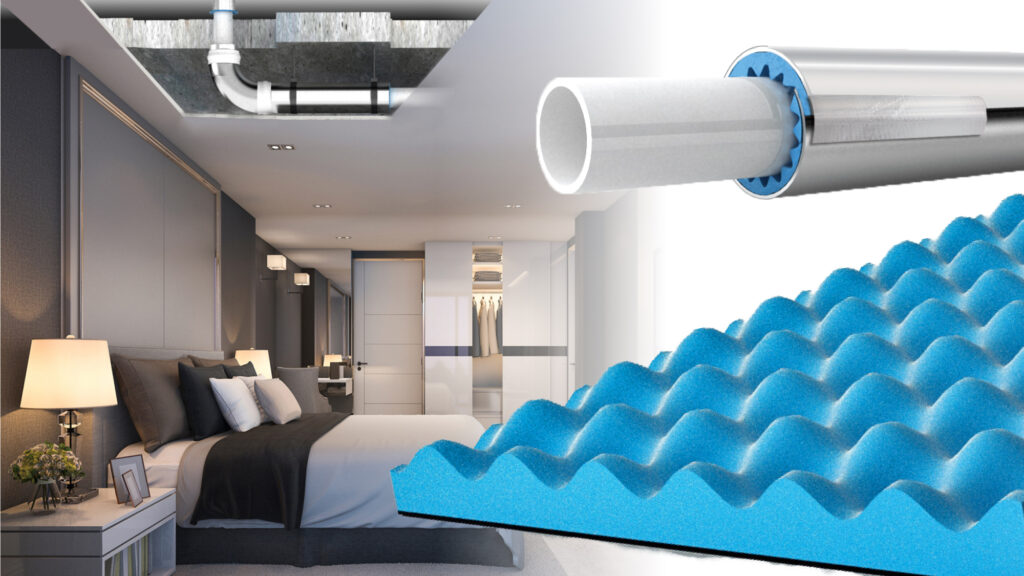

The secret lies in its innovative construction: a dense and flexible mass layer ensures exceptional sound reduction capabilities, while the decoupling layer effectively interrupts the vibration path between the substrate and the mass barrier.
This unique design allows the vinyl external wrap to maintain its flexibility, thereby optimizing overall performance. Additionally, the external foil facing not only provides fire resistance but also serves as an excellent surface for seamless joining of adjacent sheets.
Applications:
- Hydraulic and waste water pipes
- Air-conditioning ducting and shrouds
- Compressor wraps
- Spa motor wraps
Features:
- Better performance – up to 5 dB(A) with Soundlag® 4525C compared to low noise pipe products without ceiling or areas with penetrations
- Free from odor producing oils and bitumen
- Contain no ozone depleting substances
- Accredited to ISO 9001 Quality Control Standard
- Tested to AS 1530.3 with excellent flame resistance
- Broad operating temperature range
- Reduces noise in hydraulic and waste pipes by up to 25.2 dB(A) (4525C)
- Varying range of weights and thicknesses
- Choice of foam, polyester, fiberglass or glass wool
- Can cut to size and simple to install
- Easy to bond – matching Tape ALR or equivalent
- Endorsed by leading acoustic consultants and engineers
At Quietco Canada, we offer a range of compositions tailored to your specific needs, with barrier weights ranging from 3 kg/m² to 8 kg/m². Choose from options like plain (4512) or convoluted (4525C) foam, polyester, fiberglass, glass wool, or quilted glass wool, available in thicknesses spanning from 6 mm to 50 mm.
How To Install Soundlag Acoustic Pipe Insulation and Duct Lagging Properly
- Tape ALR is easy to tear by hand.
- Remove the release liner backing
- Position tape centrally over the sections to be joined and firmly press along the entire tape surface.
- Wipe or rub with firm pressure across the tape with a cloth or blade to smooth out any air bubbles or buckles. Do not over-stretch the tape when applying, as this will create buckles and voids in the contact area.
All joints along longitudinal pipe sections must be fitted with an overlap of adjoining segments.
Overlapped sections must then be taped and sealed with ‘Tape ALR’ or equal. A strip of 30 mm foam can be removed along one or both edges as required to provide for an overlap at joints.
For added versatility, Soundlag® is available in alternative color options, including black and white foil, ideal for exposed ceiling spaces where glare reduction is essential.
Say hello to uninterrupted peace and quiet with Soundlag® Acoustic Pipe Insulation and Duct Lagging available at Quietco Canada, your ultimate solution for effective soundproofing in any environment – https://www.quietco.ca/product-category/soundproofing/soundlag/
